一、特點 Characteristic
臥式自動分切機是我廠為塑料薄膜、無紡布、塑料制袋、造紙等工廠生產的分切設備。本機集機、電、光、氣于一體化,經精心設計、精細加工、精密裝配而成,具有分切速度高、切膜整齊、運行平穩、操作方便等優點,是十分理想的分切設備。BOPP、OPP、CPP、PET、PE、POF無紡布、紙張、復合膜、鍍鋁膜、牛皮紙等。
Horizontal automatic slitting machine is our factory for plastic film, non-woven
fabric, plastic bags, paper and other factories production slitting equipment. This machine integrates machine, electricity, light and gas, and is made by careful design, fine processing and precise assembly. It has the advantages of high cutting speed, NEAT cutting film, stable operation and convenient operation. Bopp, OPP, CPP, PET, PE, POF non-woven
fabric, paper, composite film, aluminized film, Kraft Paper, etc. .
二、主要技術參數 Main Technical Parameter
1 | 型號 | Model | YF-WS1100 |
2 | 原料寬度 | Max Material Width | 1100mm |
3 | 放卷直徑 | Max Unwinding Diameter | 600mm |
4 | 收卷直徑 | Max Rewinding Diameter | 600mm×2 |
5 | 放卷紙芯直徑 | Paper core Diameter | φ76mm |
6 | 收卷紙芯直徑 | Unwinding roller diameter | φ76mm |
7 | 分切速度 | Slitting Speed | 30-120m/min |
8 | 成品寬度 | The width of finished product | 25-1100mm |
9 | 分切精度 | Slitting precision | ±0.2mm |
10 | 機器功率 | Total power | 3..5kw/220v |
12 | 機器重量 | Machine Weight | 950kg |
13 | 外形尺寸 | Machine Dimension | 2200×1800×1300mm |

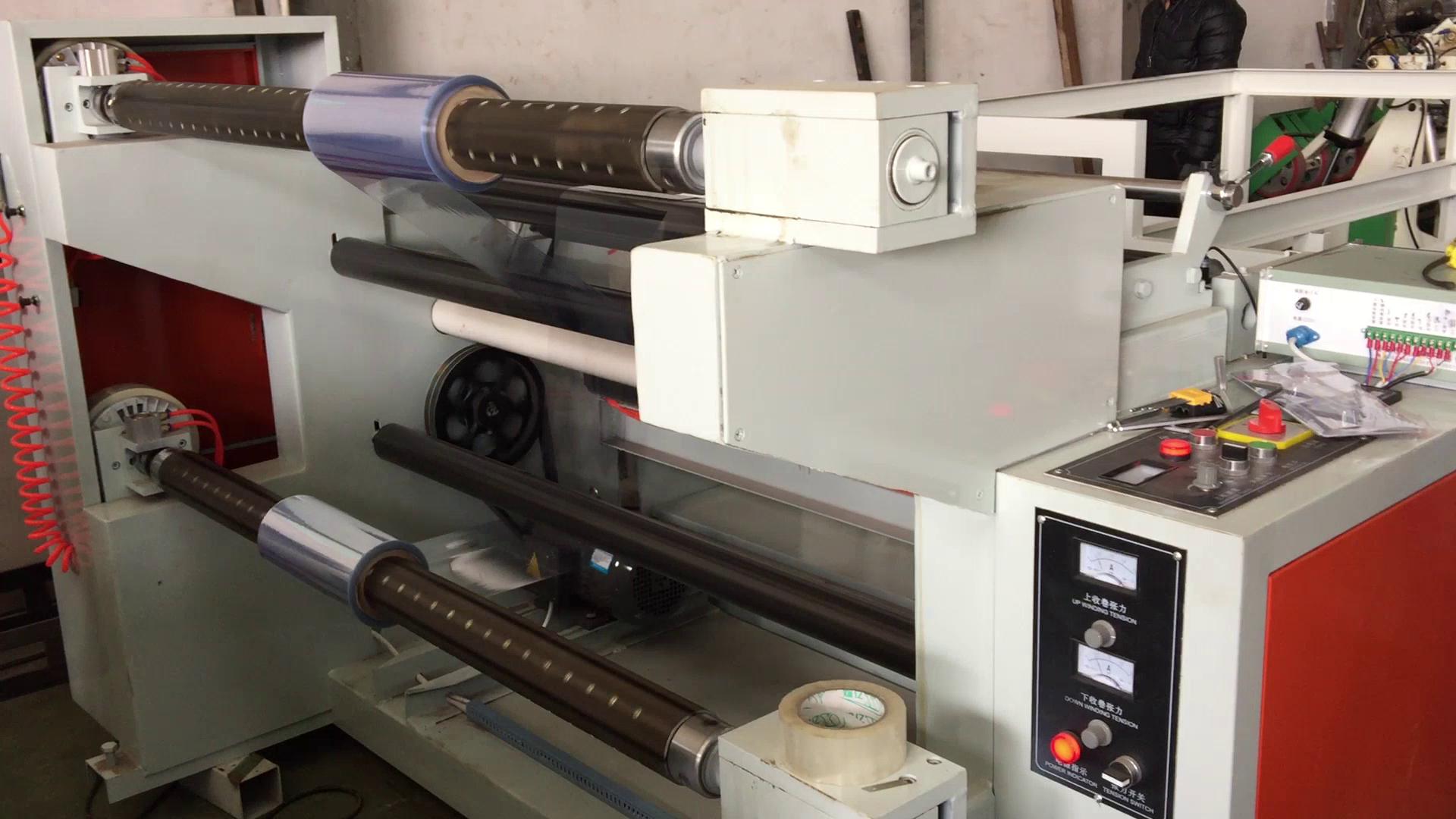

三、機器實拍圖 Machine shot image
